NEEDLE ON BAR VALVE 10000 PSI

ITE V

  • HIGH PRESSURE
  • UNEXPELLABLE STEM
  • AISI F316L CASTING
  • LOW PAR
  • METAL METAL SEALING

Step: 4mm/10mm

Pressure: 3000/6000/10000

Temperature: -54ºC to 530ºC

Ask request

NEEDLE IN BAR VALVE 10000 PSI





HIGH PRESSURE
INEXPELLABLE STEM
CAST AISI F316L
METAL SEALING
LOW TORQUE

ITE V

    Step: 4mm/10mm

    Pressure: 3000/6000/10000

    Temperature: -54ºC to 530ºC

    Ask request

    Description

    NEEDLE VALVE WITH METAL-METAL BODY SEALING – ITE V41/42/43/59/61/62

    ITE V41

    Female X Female Thread

    ITE V42

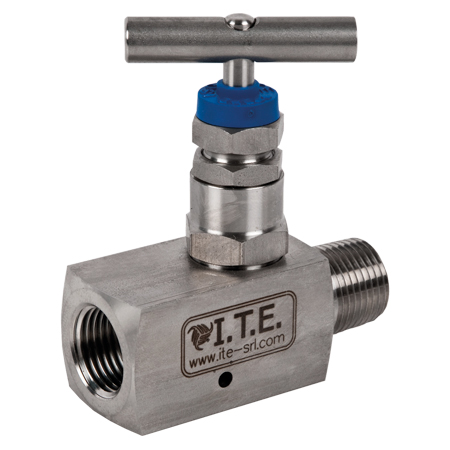

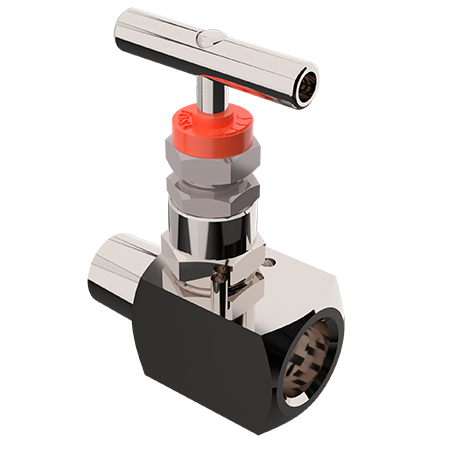

    Male X Female Thread

    ITE V43

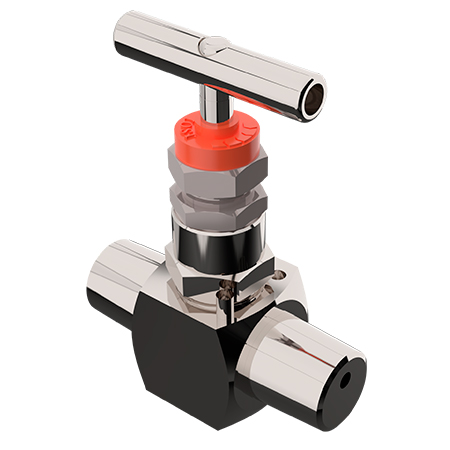

    Male X Male Thread

    ITE V59

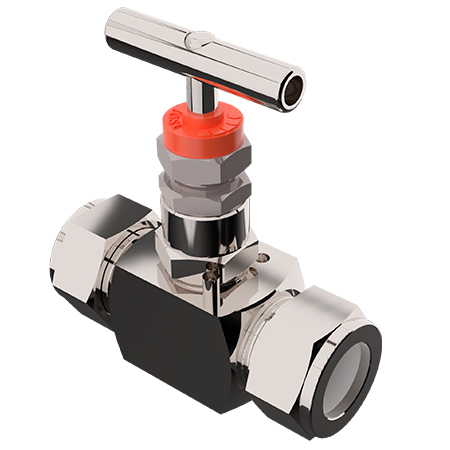

    Compression Connections

    ITE V61

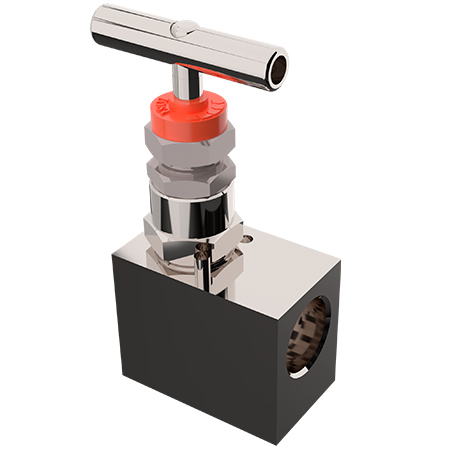

    90º Female X Female Thread

    ITE V62

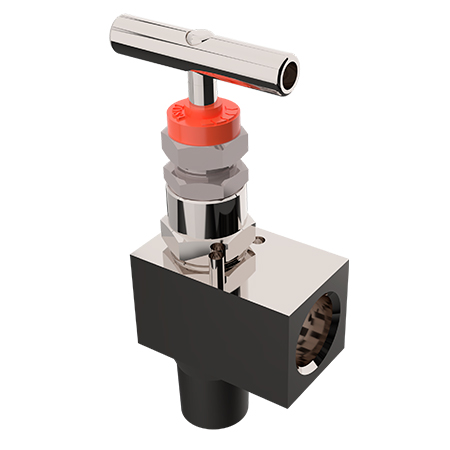

    90º Male X Female Thread

    The needle valves come equipped with standard features such as PTFE and GRAPHOIL packing available for all types , with a standard hole of 4 mm. The wetted parts meet NACE MR.0175/MR.0103 standards, ensuring compatibility in various applications. We perform shell tests and seat tightness tests according to API 598 and ASME B16.34, complying with a maximum nominal pressure of 1.5. Each valve body material is accompanied by a 3.1 certificate in accordance with EN 10 204. Please note that valves and manifolds are not supplied with plugs unless otherwise specified. In addition, we offer 10 mm orifice size upon request, O-ring packing for oxygen service, and PTFE packing that is cleaned and Degrease for optimal performance.

    TAPERED PIPE THREADS

    Male

    Female

    NPT threads according to. to. ASME B 1.20.1
    BSPT threads according to. a.ISO 7/1

    DOUBLE FERRULE PIPE CONNECTORS

    Direct pipe connection.
    It is available in both metric
    and inch sizes.
    All components are made
    by I.T.E. s.r.l.

    PARALLEL PIPE THREADS

    Male

    Female

    BSPP threads according to. to. ISO 228-1
    ISO 1179-1
    Metric threads according to a. ISO 261

    PARALLEL PIPING THREADS – CONNECTION FOR INSTRUMENTATION

    Male

    Female

    Threads according to. to. ISO 228-1
    EN 837-1
    Metric threads according to a. ISO 261

    WELDABLE ENDS

    Male

    Female

    Butt welding (male) according to a.
    ASME B16.9
    Socket welding (female) according to a.ASME
    B16.11

    Technical characteristics

    NEEDLE VALVE WITH METAL-METAL BODY SEALING – ITE V41/42/43/59/61/62

    VÁLVULA DE BOLA BRIDAS DIN EN ACERO INOXIDABLE
    Handle
    Low torque operation handle. Anti-tamper or blocking system.
    Dust seal
    Provides protection against dirt and a distinctive color according to its function.
    Upper stem
    Stem with cold rolled thread for greater strength and smoother handling. Built-in rear stop.
    Stuffing box and packing
    Stuffing box and packing with easy adjustment and anti-vibration nut.
    Metal metal seal and gasket
    Metal-metal secondary seal with attached gasket to prevent loss of lubricant or contamination of the medium.
    Metal seal metal to body
    Metal-to-body seal offers high pressure resistance and durability, reducing the need for maintenance. Additionally, it is effective over a wide range of extreme temperatures and has a low risk of leaks, ensuring a secure seal. Its chemical compatibility with various media and dimensional stability under harsh conditions make it a reliable choice for critical industrial applications.
    Lower stem
    Non-rotating lower stem for smooth operation and minimal wear on sealing elements. The lower stem is anti-leakage/non-removable for your safety.
    Locking pin
    A2 valve pins designed to stop movement offer numerous benefits, including excellent corrosion resistance and high tensile strength due to their stainless steel construction, ensuring durability and longevity even in harsh environments. They provide precise control over valve movement, maintaining system integrity while requiring minimal maintenance, reducing operating costs.
