BUTTERFLY VALVE REPLACEMENT GATE
WITHOUT MODIFYING PIPE SECTIONS
QUADAX
Range: DN80 – DN1000 (and larger)
Pressure: 52/100 bar
Temperature: From −270 ° C to +800 ° C
BUTTERFLY VALVE REPLACEMENT GATE
WITHOUT MODIFYING PIPE SECTIONS
QUADAX
Range: DN80 – DN1000 (and larger)
Pressure: 52/100 bar
Temperature: From −270 ° C to +800 ° C
Description

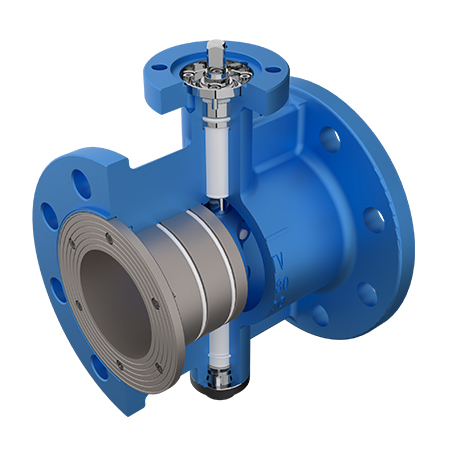

BUTTERFLY VALVE TO REPLACE GLOBE VALVE OR GATE – QUADAX
This version has been designed to replace globe or gate valves without the need to modify the piping system. Unlike other valve designs, using Quadax® saves space and weight, as well as reducing operating costs.
Technical characteristics
BUTTERFLY VALVE TO REPLACE GLOBE VALVE OR GATE – QUADAX
Nominal diameter:
DN 80-1000, 3 ”-40” and larger
Distance between faces:
ANSI B16.10 long pattern (PN 10–160 / class 150–900)
Materials:
Carbon steel, stainless steel, special materials (duplex, inconel, bronze)
Function:
NC, NO, DA
Pressure range:
Body pressure up to 100 bar
Δp = 52 bar in both directions with standard shaft
Δp = 100 bar in both directions with specific axis
Δp = 52 bar in both directions with standard shaft
Δp = 100 bar in both directions with specific axis
Tightness:
Body pressure up to 100 bar
Δp = 52 bar in both directions with standard shaft
Δp = 100 bar in both directions with specific axis
Δp = 52 bar in both directions with standard shaft
Δp = 100 bar in both directions with specific axis
Flow direction:
Bidirectional with preferred direction indicated on the valve
Working temperature:
From −10 ° C to +450 ° C with standard materials
From −270 ° C to +800 ° C with special materials
From −270 ° C to +800 ° C with special materials
Certifications:
PED, Fire protection, BAM, TA Luft, ATEX, SIL 3, etc
KV value:
