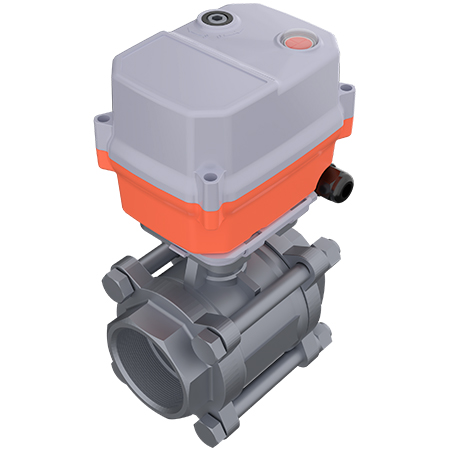

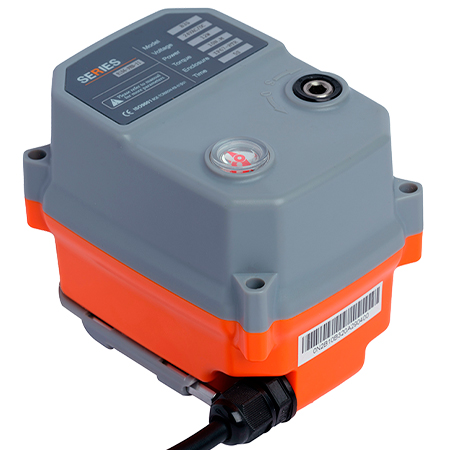

COMPACT ELECTRIC ACTUATOR AVA 10NM
SERIES 10
- COMPACT DESIGN
- MULTIVOLTAGE
- FAST OPERATION
- FAILSAFE OPTION
- OLED DISPLAY
Nominal Torque: 10Nm (88 in.lbs)
Voltage: 24VAC/DC, 95-265VAC, 12VDC
Protection Rating: IP67 / Nema 4x
COMPACT ELECTRIC ACTUATOR AVA 10NM
Technical Specifications:
Nominal Torque: 10Nm (88 in.lbs)
Voltage: 24VAC/DC, 95-265VAC, 12VDC
Protection Rating: PC + PET
Technical Features
HIGH-EFFICIENCY, COMPACT, AND ROBUST DESIGN ELECTRIC ACTUATOR – SERIES 10
The Compact Electric Actuator Series 10 is the ideal solution for applications requiring precise and efficient control. Designed to deliver exceptional performance in confined spaces, this actuator combines robustness and versatility, ensuring reliable operation in a variety of conditions.
On/Off
Standard Open/Close, power to open, power to close. Stays put on loss of power.
Failsafe/Modulating Failsafe
High Speed / Modulating High Speed
This actuator allows for fast opening and closing, with a runtime 50% faster than the standard, achieving 1 second in the 10, 20, and 50Nm series with a 24VDC motor. Additionally, it offers modulating control through 4-20mA, 0-10V, or 2-10V, enabling a movement from 4mA to 20mA in 1 second (only for the 10, 20, and 50 series with DC motor).
Smart Menu
All of our Smart actuators come with a SmartMenu featuring password-protected firmware. Once the password is entered, you can change parameters such as speed, working angle, failsafe position, 3-position configuration, and much more.
Timer
Through our SmartMenu, the Timer series allows programming a 24/7 timer with up to 60 operations (open/close movements) per day. Intelligent functionality without the need for a PLC.
Modbus
Modbus RS485/RTU and CANBus are available as standard to connect the actuator to a BUS system. Through the BUS communication protocol, you can read the actuator’s position, detect errors, and more. We also offer Modbus TCP/IP upon request.
Other protocols will be available soon.
Feedback
All of our actuators have open/close feedback. The basic models use mechanical switches, the Smart series uses electronic relays, and the modulating models have a modulation output (e.g., 4-20mA) instead of end-of-travel feedback.
3 Positions
Through the SmartMenu, you can configure the actuator in 3 positions (open, close, and intermediate) or set it to 0-90-180 degrees for 3-way valves. This flexibility allows precise adaptation of the actuator to various applications.
Local Control
Through the SmartMenu, the smart actuators allow manual operation via touch buttons on the screen. Protected by a password, it offers electronic manual override, facilitating opening and closing when power is available.
Easy installation
Specifications
HIGH-EFFICIENCY, COMPACT, AND ROBUST DESIGN ELECTRIC ACTUATOR – SERIES 10
| Standard Specifications | B10 Basic | S10 Smart |
|---|---|---|
| Max Rated torque Nm output (in.lbs) | 12Nm Break (106) / Run 10Nm (88) | 12Nm Break (106) / Run 10Nm (88) |
| Voltage Range | 24VAC/DC, 95-265VAC, 12VDC | 24VAC/DC, 95-265VAC, 12VDC |

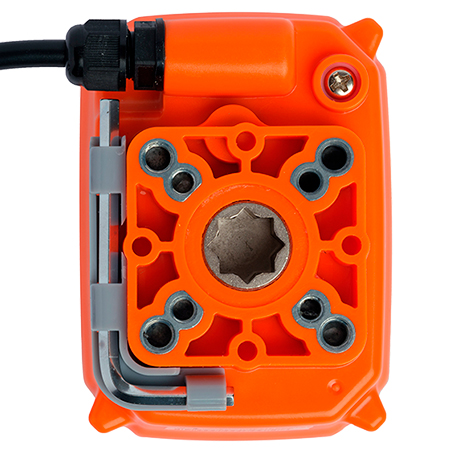

| Mounting (ISO5211) x drive (female octagon) | F03 & F05 x 11mm | F03 & F05 x 11mm |
| Standard Run Time | 5 seconds | 5 seconds |
| Electrical connection | Pre-wired multi-core 0.8m cable | Pre-wired multi-core 0.8m cable |
| End of travel confirmation (dry contact/volt-free) | 2x Mechanical micro-switches | 2x Electronic relays |
| LED Status | LED open/close | LED open/close/alert |
| Actuator Dimensions & Weight in Kg | Height 76 mm x Width 66 mm x Lenght 90 mm / 0,5 kg | Height 76 mm x Width 66 mm x Lenght 90 mm / 0,5 kg |
